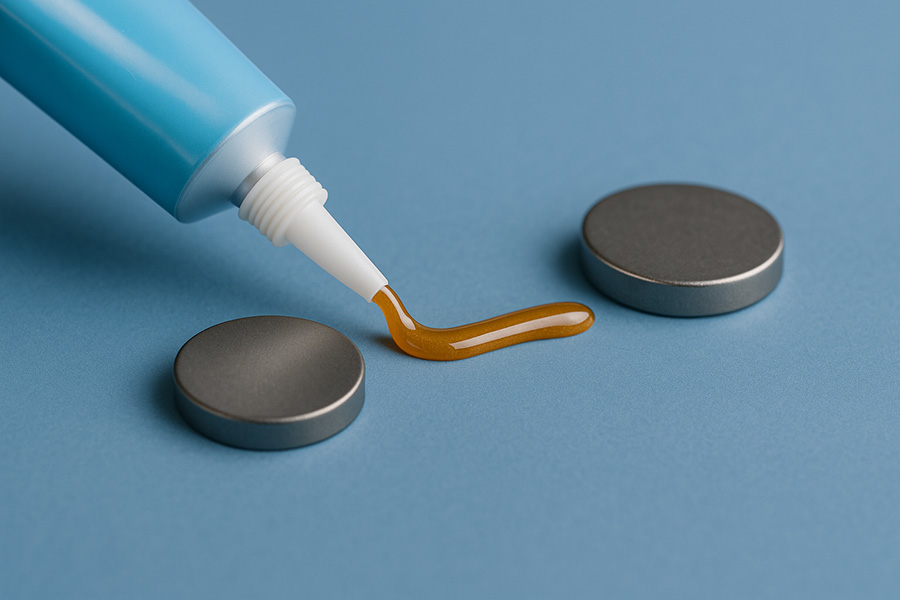

Magnets drive countless industrial applications. From motors to sensors, these powerful components fuel modern manufacturing and technology. But their effectiveness hangs on proper installation.
Pick the wrong adhesive and your project fails early. Choose the right one and you get lasting performance even in tough conditions.
This guide covers key factors for adhesive selection, compares common types, and shares best practices for creating strong, reliable magnet bonds.
Table of Contents
Neodymium Magnets and Surface Considerations
Neodymium Magnets: The Industry Standard
Neodymium magnets (NdFeB) are the strongest permanent magnets available. They pack exceptional magnetic force into compact sizes, perfect for tight spaces.
These magnets typically come with protective coatings to prevent corrosion. Common finishes include nickel, zinc, gold, and epoxy coatings. Each surface affects bonding differently.
Nickel-plated neodymium offers excellent corrosion resistance with a smooth bonding surface. Zinc coatings protect well but might need special prep. Epoxy-coated magnets already have a polymer layer that some adhesives bond well with.
Bonding Neodymium Magnets Has Challenges
Bonding magnets isn’t like bonding regular materials. Strong magnetic attraction can suddenly pull components together during alignment, squeezing out adhesive or throwing off positioning.
Neodymium magnets also face demanding environments. Many applications involve temperature changes, vibration, or chemical exposure. Your adhesive must handle these conditions.
And neodymium magnets are brittle. Drilling or mechanical fastening risks breaking them, making adhesive bonding the preferred attachment method in most cases.
Key Criteria for Selecting Adhesives for Neodymium Magnets
Bond Strength and Shear Resistance
Neodymium magnets create significant forces that transfer to the bond line.
- Look for adhesives with shear strength ratings of at least 2000-3000 psi for industrial applications.
- The strongest structural adhesives reach tensile strengths of 4000-6000 psi.
This strength becomes crucial when magnets experience perpendicular pulling forces.
Thermal Resistance
Neodymium magnets have temperature limitations.
- Most grades lose magnetic properties above 80-200°C, depending on quality. Your adhesive should stay intact within this range.
Choose adhesives with temperature resistance that matches or exceeds your magnet grade. Some high-performance epoxies remain stable up to 180°C, ideal for motor applications.
Impact and Vibration Resistance
Many industrial magnet applications involve continuous vibration or occasional impacts. Brittle adhesives crack under these conditions, causing bond failure.
Toughened adhesive formulations include tiny rubber particles that absorb energy. These modified systems offer excellent vibration resistance without sacrificing overall strength.
Environmental Factors
Think about where your magnet assembly will operate. Will it face moisture, oils, acids, or UV exposure? Different adhesives offer varying resistance to these environmental factors.
For wet environments, polyurethane adhesives keep their flexibility and water resistance. For chemical exposure, certain epoxies provide excellent chemical resistance against specific substances.
Curing Time and Process Requirements
Production constraints often dictate adhesive selection. Fast-curing systems speed up manufacturing but may sacrifice some performance.
Room-temperature curing simplifies processing but typically yields lower strength. Heat-cured systems need ovens but often deliver superior performance and chemical resistance.
Gap-Filling Capabilities
Surface irregularities create gaps between magnets and substrates. Some adhesives excel at filling these voids while maintaining strength.
Thixotropic adhesives resist flowing away from where you apply them. This helps maintain adhesive position during curing, especially on vertical surfaces.
Common Adhesive Types for Neodymium Magnets
Epoxy Adhesives
Characteristics
Epoxies deliver exceptional bond strength and excellent environmental resistance. Two-part systems create strong, rigid bonds through chemical reaction. Single-component formulations cure with heat.
Strength Values
Quality structural epoxies provide shear strengths of 15-30 MPa (2175-4350 psi) on metal surfaces, with specialty formulations reaching up to 40 MPa (5800 psi).
Standard formulations withstand temperatures from -40°C to 100°C, while high-temperature grades can maintain integrity up to 150-180°C or even 200°C.
Applications
Motors, generators, sensors, and any application requiring maximum bond strength under harsh conditions.
Popular Brands
Loctite EA (formerly Hysol), 3M Scotch-Weld, Henkel Technomelt, and Masterbond EP systems.
Technical Notes
Mixing ratio accuracy directly impacts performance. Most systems require 24-hour room temperature curing for handling strength, with full cure taking 5-7 days. Heat-curing speeds this up significantly.
Cyanoacrylates (Super Glues)
Characteristics
These single-component adhesives cure rapidly through reaction with surface moisture. They create rigid, moderately strong bonds with excellent tensile strength.
Strength Values
Typical shear strengths range from 1000-3500 psi, with temperature resistance usually limited to 80-100°C.
Applications
Electronic assemblies, quick repairs, and applications where thin bond lines and fast handling strength are priorities.
Popular Brands
Loctite 401/406/410 series, 3M Scotch-Weld Instant Adhesives, and Permabond 2011/737 products.
Technical Notes
Surface activators can speed up curing. Low gap-filling capability limits effectiveness on porous or uneven surfaces. Most formulations have limited impact resistance.
Acrylic/Methacrylate Adhesives
Characteristics
These adhesives balance quick curing with structural strength.
Modern formulations offer improved impact resistance and tolerate less-than-perfect surface preparation, often requiring minimal surface preparation even on slightly oily metals.
Strength Values
The ultimate shear strength of structural acrylics is on par with epoxies (20-30 MPa or 2900-4350 psi on metal).
Most acrylic adhesives handle temperatures from -55°C to 120°C, with some special grades reaching 150°C. Anaerobic retaining compounds like Loctite 638 can withstand continuous service up to 180°C.
Applications
Sensor assemblies, automotive components, and applications requiring faster production throughput than epoxies provide.
Popular Brands
Loctite 320/330 series, 3M Scotch-Weld DP8xx series, and Lord 400/600 series adhesives.
Technical Notes
Many systems use separate activators applied to one surface. Distinctive odor requires good ventilation during application. Working time typically ranges from 3-15 minutes.
Polyurethane Adhesives
Characteristics
These adhesives provide flexibility alongside good strength.
They absorb vibration and accommodate slight thermal expansion differences between materials.
One-part versions foam and expand slightly during curing, which helps fill voids in irregular surfaces.
Strength Values
Polyurethane adhesives generally offer shear strengths of 5-15 MPa (725-2175 psi), slightly lower than rigid epoxies.
They excel in peel strength and impact resistance due to their flexibility.
Service temperatures typically range from -40°C to 80-100°C, with most formulations starting to soften above 80°C.
Applications
Outdoor equipment, applications with thermal cycling, and situations requiring shock absorption.
Popular Brands
Sikaflex, 3M Scotch-Weld Urethane Adhesives, and Henkel Macroplast products.
Technical Notes
Moisture-curing systems react with humidity. Many formulations expand slightly during curing, which helps fill gaps but requires attention to alignment.
Silicone Adhesives
Characteristics
Silicones offer excellent temperature extremes resistance and permanent flexibility. They provide moderate strength with superior weathering resistance and remain highly elastic with elongation often exceeding 200%.
Strength Values
Silicones have lower shear strength, typically in the range of 1-3 MPa (145-435 psi), with specialized “high strength” silicone adhesives reaching 5-6 MPa (725-870 psi) at best.
Their true value lies in their exceptional temperature resistance, ranging from -50°C to 180°C for standard grades, with high-temperature formulations handling 250-300°C continuously.
Applications
High-temperature environments, outdoor applications, and situations requiring stress relaxation.
Popular Brands
Dow Corning RTV series, Momentive RTV silicones, and Wacker Elastosil products.
Technical Notes
Most silicones release acetic acid during curing, which can corrode some metal surfaces. Neutral-cure formulations avoid this issue but cure more slowly.
Step-by-Step Guide to Bonding Neodymium Magnets
Surface Preparation
First, clean magnet surfaces thoroughly with isopropyl alcohol or acetone. Remove all oils, dust, and contaminants that would interfere with adhesion.
For nickel-plated magnets, light abrasion with fine sandpaper (320-400 grit) creates a mechanical key. Be gentle to avoid removing the protective plating completely.
Allow surfaces to dry completely before applying adhesive. Even trace moisture can compromise many adhesive systems.
Adhesive Selection and Mixing
Choose your adhesive based on strength requirements, environmental conditions, and production constraints discussed earlier.
For two-part systems, measure components precisely. Many epoxies require exact ratios for optimal performance. Digital scales help achieve accuracy for small batches.
Mix thoroughly according to manufacturer instructions. Incomplete mixing leads to soft spots and weak bonds. Many epoxies require 2-3 minutes of mixing.
Application and Alignment
Apply adhesive in a thin, even layer covering the entire bonding surface. Avoid excessive thickness, which reduces overall bond strength.
With neodymium magnets, use spacers or fixturing to prevent uncontrolled attraction during positioning. Wooden craft sticks work well for temporary alignment.
Remove excess adhesive from edges before it cures fully. For precision assemblies, leave a small fillet around the bond line to increase joint strength.
Curing and Clamping
Maintain proper positioning throughout the curing period. For room-temperature curing systems, this typically means 24 hours minimum.
Temperature significantly impacts curing speed. Most adhesives cure faster in warmer environments. Some epoxies can be heat-cured at 65-80°C to speed up processing.
Avoid stressing the joint before complete curing. Many adhesives reach handling strength quickly but require days for full chemical resistance and strength.
Post-Cure Testing
After full cure, perform gentle testing to verify bond integrity. Apply light force before subjecting the assembly to full operational loads.
Inspect the bond line for voids, incomplete coverage, or signs of delamination. A complete bond should show consistent contact across the surface.
Document your process parameters and results for future reference. This documentation helps refine your bonding procedures for similar applications.
Real-World Applications
Electric Motors and Generators
In motor applications, neodymium magnets experience centrifugal forces and thermal cycling. High-temperature epoxies like Loctite EA 9394 provide reliable performance under these conditions.
Surface preparation becomes critical for these demanding applications. Many manufacturers use plasma treatment or special primers to enhance adhesion.
Sensor and Instrumentation Assemblies
Precision sensor applications require exact positioning and stable bonds. Modified acrylics like 3M DP8805 provide fast fixture times while maintaining dimensional stability.
These applications often demand clean appearance and controlled bond line thickness. Dispensing equipment helps achieve consistent results across production runs.
Automotive and Aerospace Components
Transportation applications subject magnets to vibration, temperature extremes, and sometimes harsh chemicals. Toughened epoxies like Henkel Loctite EA 9309 provide excellent durability.
Many of these applications require certification testing. Documenting adhesive selection and application procedures supports qualification efforts.
Common Pitfalls and How to Avoid Them
Insufficient Surface Preparation
Problem: Contaminants prevent adhesive from making direct contact with surfaces, leading to weak bonds.
Solution: Implement standardized cleaning protocols. Use lint-free wipes and fresh solvents. Consider plasma treatment for critical applications.
Using the Wrong Adhesive
Problem: Adhesives that cannot withstand application conditions fail early, even if initially strong.
Solution: Carefully evaluate operating environment before selection. Test bonded assemblies under actual conditions before full implementation.
Improper Mixing and Curing
Problem: Undermixed adhesives leave uncured pockets. Insufficient cure time results in weak bonds.
Solution: Use metered dispensing equipment for production. Establish minimum cure times based on temperature and humidity conditions.
Excessive Magnet Attraction During Alignment
Problem: Magnets snapping together squeeze out adhesive, creating weak spots.
Solution: Design fixturing that controls movement during assembly. Consider partial pre-curing to increase viscosity before final positioning.
Frequently Asked Questions
Can I Use Hot Glue for Neodymium Magnets?
Hot glue (hot melt adhesive) works for temporary or low-stress applications. However, most formulations soften around 60-70°C and provide limited strength. The application temperature (120-180°C) can partially demagnetize neodymium magnets. For industrial applications, structural adhesives offer superior performance.
How Long Will My Magnet Bond Last?
Bond longevity depends on adhesive selection, surface preparation, and operating conditions. Properly selected and applied structural adhesives can maintain integrity for 10+ years in controlled environments.
Cyanoacrylate bonds may degrade over months or years in wet conditions. Silicones can resist UV light and ozone, making them excellent for outdoor aging. Epoxies might chalk after years of sun exposure unless UV-stabilized. Regular inspection helps identify potential issues before failure.
Is Mechanical Fastening Better Than Adhesive Bonding?
Each method has advantages. Mechanical fastening requires drilling, which risks cracking brittle neodymium magnets. Adhesive bonding distributes stress more evenly across the surface. For maximum reliability, some applications combine both methods.
Can I Bond Magnets to Any Surface?
Most materials accept bonding with suitable adhesive selection. Low surface energy plastics (like polyethylene) require special surface treatments. Porous materials may need sealing before adhesive application. Consult adhesive manufacturer data sheets for specific recommendations.
How Can I Remove a Bonded Magnet If Necessary?
Heat often weakens adhesive bonds enough for careful separation. For epoxies, heating to 150-200°C typically degrades the polymer. Cyanoacrylate bonds can be weakened with acetone or special debonder solvent.
Silicone-bonded magnets can be removed by cutting/prying the rubbery adhesive, which usually peels off in chunks or can be rubbed off. For threadlockers, heating to 200°C is recommended, though this will likely demagnetize a neodymium magnet.
Remember that neodymium magnets’ Curie temperature is around 310°C, but even exposure to 150-200°C can cause partial demagnetization. If maintaining magnet strength is important, try solvent or mechanical methods first.
Troubleshooting Guide
Bond Fails Immediately
Potential causes: Insufficient surface preparation, incompatible adhesive, or excessive stress during curing.
Solution: Clean surfaces thoroughly, ensure adhesive compatibility with both substrate and magnet coating, and use fixturing during cure.
Bond Fails After Environmental Exposure
Potential causes: Temperature exceeds adhesive limits, chemical attack, or moisture infiltration.
Solution: Select adhesive with appropriate environmental resistance. Consider applying edge sealant to protect the bond line.
White Residue Forms Around Bond Line
Potential causes: Adhesive degradation from UV exposure or chemical reaction with environment.
Solution: Select UV-stable adhesive formulation or apply protective coating over the assembly.
Bond Strength Decreases Over Time
Potential causes: Stress relaxation, thermal cycling fatigue, or gradual environmental degradation.
Solution: Select adhesive with proven long-term performance. Consider stress-relieving designs that minimize constant load on the bond.
